Frames / Radio - Raceline Solar Raceline Frame - Pro XXL

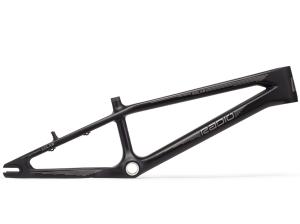

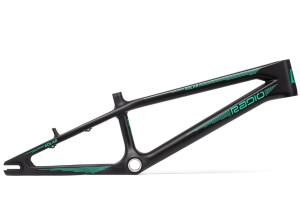

Radio - Raceline Solar Raceline Frame - Pro XXL

MATERIAL - High performance TORAYCA carbon fiber
TOP TUBE LENGTH (actual) – 21.75” (553mm)
TOP TUBE LENGTH (effective) – 22.9” (584mm)
CHAIN STAY LENGTH (min.) - 14.5” (368mm)
DROPOUT SIZE - 15mm
HEAD TUBE ANGLE - 74.5°
SEAT TUBE ANGLE - 71°
HEAD TUBE SIZE (full int.) - tapered 1-1/8” - 1.5” (120mm)
SEAT POST SIZE - 27.2mm
SEAT TUBE LENGTH - 238mm
BOTTOM BRACKET TYPE- Euro, threaded, BSA 68mm
BOTTOM BRACKET HEIGHT - 11.6"
WHEEL SIZE - 20 x 1.75”
RIDER AREA – 540.7mm
EXTRAS
• full monocoque technology
• internal cable routing
• laboratory tested for superior strength and stiffness

$2499.00
