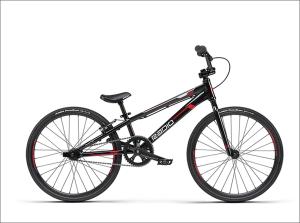

Radio - Raceline Xenon Junior Bike


The Xenon Junior is light, tough and built to dominate. The mid-tier xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with Radio’s aftermarket disc brake kit. They spared no details here, from forged disc-ready dropouts, Radio’s very own aftermarket clipper junior rims to parts from Promax and Tioga, the Xenon is a natural born winner.



Frame - Hydroformed 6061 t6 alloy, forged & disc brake mount ready dropouts

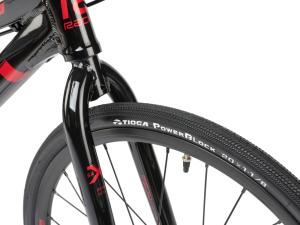

Fork - cr-mo, 1" butted steerer tube, cr-mo fork legs, 23mm offset

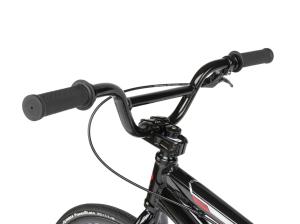

Handlebar - 6061-t6 alloy

Grips - Radio, xenon, diamond knurling, clamp on grip, 115mm length

Stem - Radio, cobalt-toploader, ext. 40mm, alloy

Headset - Radio, integrated headset, sealed, 1"

Brake lever - Promax “xl-378” alloy brake rear

Brake - Promax “mv-85” alloy brake rear

Crank - Radio, xenon 3pc crank, forged/cnc, alloy crank, 155mm length

BB - Radio, bsa square taper, sealed

Pedals - Radio, xenon junior, alloy

Chain - KMC, z6, 1/2" x 3/32"

Sprocket - Radio, 40t, alloy

Driver - Radio, 14tcog, 1/2"- 3/32", sealed cassette driver

Front hub - Radio, xenon, alloy cnc, fully sealed, 28t, 3/8" cr-mo axle

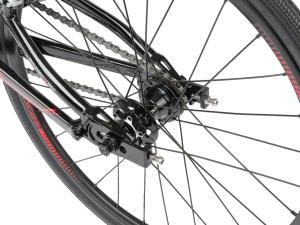

Rear hub - Radio, xenon, alloy cnc, fully sealed, 28t, disc brake cassette, 3/8" cr-mo axle

Rims - Radio, clipper junior, 28h, alloy, sleeved joint f&r

Seat - Radio, mini, combo seat

Seat post - 22.2mm alloy

Seat clamp - Radio, xenon, quick-release , alloy

Tires - Tioga, power-block, 20"x 1-1/8"

Weight - 7.78kg/ 17.16lbs



Frame geometry

Top tube length - 18.6"

Chain stay length - 13.4"

Head tube angle - 73.5°

Seat tube angle - 71°

Bottom bracket height - 10.6"



Handlebar geometry

Rise - 4.25"

Width - 22.8"

Backsweep - 8°

Upsweep - 2°

$1399.00
