Complete Bikes / Redline - MX Expert XL Bike

Redline - MX Expert XL Bike

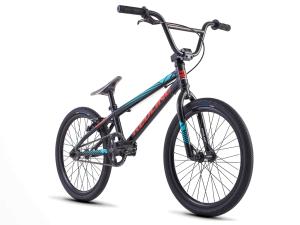

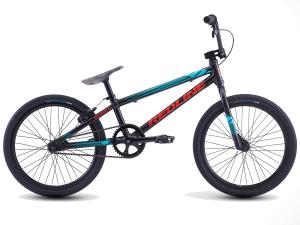

The Redline MX Expert XL is top of class for value and quality. Aluminum alloy rims, Vee Speedster 20 × 1.6 inch front and 20 × 1.4 inch rear tires, Redline premium aluminum frame, and integrated head tube all come together to make the Redline MX Expert XL lightweight and easy to maneuver. Fit riders 5'2" to 5'6".

Specifications
Frame - 6061 Alloy W/Integrated Headtube

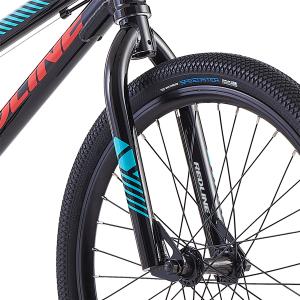

Fork - Rl Race Hi-Ten W/ Tapered Legs
Headset - Integrated 1 1/8"

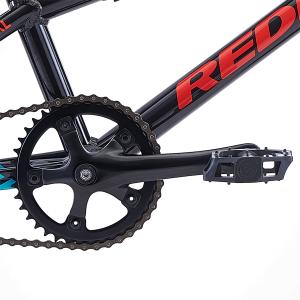

Cranks - Race Aluminum 3pc, 170mm
Sprocket - 39t, Alloy
Bottom Bracket - Euro
Cogset - 14t
Chain - Kmc Z410
Front Hub - Redline Aluminum
Rear Hub - Rl Aluminum Flip-Flop
Spokes - 14g Steel
Rims - Alloy Race 20 X 1.5, 36h
Tires - Vee Speedster (F)20 X 1.6" / (R)20 X 1.4"
Brake Levers - Tektro
Pedals - Rl Race 9/16" Pc Pedal
Handlebar - Rl Race 6.5" Rise / 12° Back / 1° Up
Grips - Redline Hex Expert W/Plugs
Stem - Rl Hollow Point Aluminum 1 1/8" Threadless

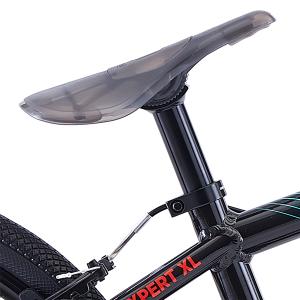

Seat - Pivotal Race
Seatpost - Pivotal 26.8
Brakes - Tektro Bx-1 Linear



Geometry
Frame Size - 20"
Bike Top Tube Length - 20.0 "
Bike Head Angle - 73.0 °
Bike Seat Angle - 69.0 °
Bike Chain Stay Length - 13.8 "
Bike Bb Height - 11.2 "
Bike Stem Length - 50.0 mm
Bike Handlebar Width - 26.0 "
Bike Crank Length - 170.0 mm

$999.00

Or 6 weekly payments of $166.50 with
