Frames / S & M - Dagger Frame

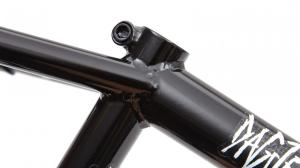

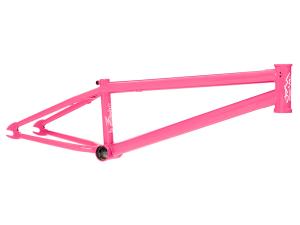

S & M - Dagger Frame

S&M's ultra-responsive park frame. With a low standover and BB, 75.3° head angle and short rear end with chain tensioners, the Dagger is compact and nimble.

TOP TUBE LENGTHS - 20.5″, 20.75″, 21″
REAR END LENGTH - 12.8″ – 13.6″
HEAD TUBE ANGLE - 75.3°
HEAD TUBE STYLE - Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE - 71°
SEAT CLAMP - Integrated
SEAT POST SIZE - 1″ (25.4mm)
BB HEIGHT - 11.6″
BB STYLE - Mid
STANDOVER HEIGHT - 7.25″
BRAKE MOUNTS - Thread-On 990 (Mounts sold separately)
DROPOUTS - 14mm Slot, 4Q-Baked, Integrated Chain Tensioners
GYRO TABS - Removable
WEIGHT -
20.5” - 2.22kgs
20.75” - 2.24kgs
21” - 2.26kgs
TUBESET - Double-Butted True Temper 4130 CrMo

$1399.00

Or 6 weekly payments of $233.17 with
