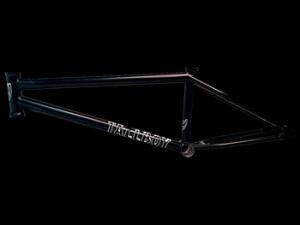

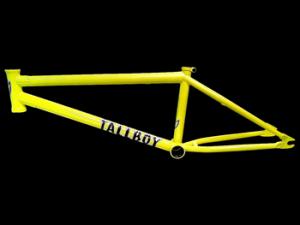

S & M - Tall Boy Frame V3


Charlie Crumlish’s signature frame features a 1/2″ taller head tube to take up the space headset spacers would use.

TOP TUBE LENGTHS: 20.75″, 21″,21.25″,21.5″
REAR END LENGTH: 13.25″
HEAD TUBE ANGLE: 75.25°
HEAD TUBE STYLE: 5.150″ Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE: 71°
SEAT CLAMP: Integrated
SEAT POST SIZE: 1″ (25.4mm)
BB HEIGHT: 11.8″
BB STYLE: Mid
STANDOVER HEIGHT: 9.2″
BRAKE MOUNTS: 5 Degree Angled 990 Mounts (Thread-On 990 kit sold separately)
DROPOUTS: 14mm Slot, 4Q-Baked
GYRO TABS: None
WEIGHT:
20.75″: 2.11kg
21″: 2.12kg
21.25″: 2.12kg
21.5″: 2.31kg
TUBESET: Butted ThermalX

$1399.00
