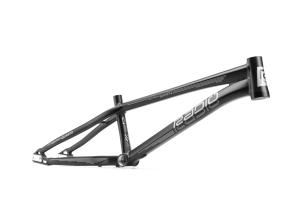

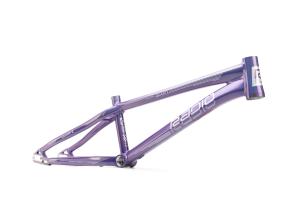

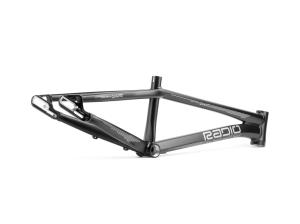

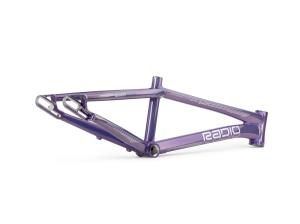

Radio - Raceline Quartz Pro Disc Frame


Features
- NEW disc brake specific model with internal cable routing

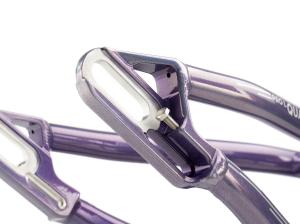

- Forged and CNC machined Sliding Dropout Disc System with integrated chain tensioner
- Super lightweight alloy frame (200g less than the Helium frame)
- x2 world championship wins
- Paradigm superior tubing
- For 10 & 15mm axles only
- Not compatible with v-brakes

Specifications
Material - Hydroformed 6061 alloy, Paradigm tubing
Top tube length (actual) – Pro - 20.5” (520.7mm), Pro L - 20.9” (530mm), Pro XL - 21.25” (540mm), Pro XXL - 21.75” (552mm), Pro XXXL - 22.25” (565mm) & Pro XXXXL – 22.5” (572mm)
Chain stay length (min.) – Pro - 13.9” (353mm), Pro L - 13.9” (353mm), Pro XL - 14.5” (368mm), Pro XXL - 14.8” (376mm), Pro XXXL - 14.8” (376mm) & Pro XXXL – 15.2” (386mm)
Dropout size - New sliding dropout disc system for 10 & 15mm axles
Head tube angle -74°
Seat tube angle - 71°
Head tube size (full int.) - tapered 1-1/8” - 1.5” (125mm)
Seat post size - 27.2mm
Seat tube length – 231mm
Bottom bracket type - Euro, threaded, BSA 68mm
Bottom bracket height – 11.6”
Wheel size – 20 x 1.75”
Rider area – Pro L – 532.6mm, Pro XL – 540.7mm, Pro XXL – 551.9mm, Pro XXXL – 564.2mm & Pro XXXXL – 570.9mm
Weight – Pro XL – 1.655g

$1499.00

Or 6 weekly payments of $249.83 with
