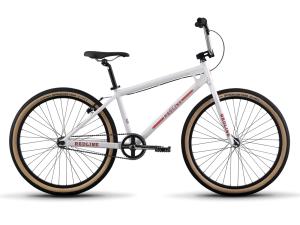

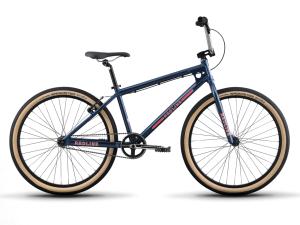

Redline - SQB 26inch Bike


The Redline SQB-26 is a nod to our very first production BMX bike, the Squareback. It features an aluminum alloy frame and a full chromoly steel fork. Vintage-style graphics, double head tube gussets, and the V-shaped handlebar let you roll around town in retro style. You can also bust out a few laps at your local track, thanks to the race-worthy components, including Flight cranks, a Redline Sport saddle, and Vee Speedster 26×2.125 inch tires.

Specifications
• Frame - 6061 alloy, gussets, oversized cs
• Fork - full chromo
• Headset - sealed integrated headset 1 1/8, aluminum top cap

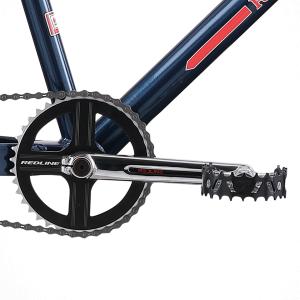

• Cranks - classic flight cranks, dual pinch, chromo, w/chrome finish and retro decal, 180mm
• Sprocket - proline, alloy, 39t
• Bottom bracket - sealed euro bb
• Cogset - 17t
• Chain - kmc z33
• Front hub - aluminum fully sealed
• Rear hub - aluminum, flip-flop , fully sealed
• Spokes - 14g stainless steel
• Rims - alloy, 36h
• Tires - vee speedster 26 x 2.125
• Brake levers - tektro
• Pedals - bear cage aluminum 9/16" platform

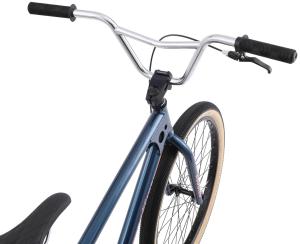

• Handlebar - v-bar, chromo 7.5" rise/ 28.5" wide, 10 deg back, 4 deg up, chrome finish
• Grips - rl pro hex grips
• Stem - rl aluminum hollowpoint 55mm
• Seat - redline sport w/ classic pleat pattern
• Seatpost - aluminum 27.2mm
• Brakes - tektro 930al linear

Geometry
Frame Size - 26"
Bike Top Tube Length - 22.2 "
Bike Head Angle - 71.0 °
Bike Seat Angle - 73.0 °
Bike Chain Stay Length - 16.9 "
Bike Bb Height - 12.0 "
Bike Stem Length - 55.0 mm
Bike Handlebar Width - 28.0 "
Bike Crank Length - 180.0 mm

$1999.00

Or 6 weekly payments of $333.17 with
