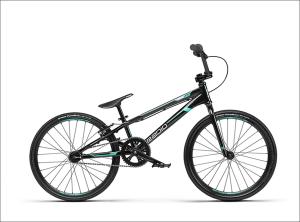

Radio - Raceline Xenon Expert Bike
The Xenon expert is the next step on the ladder to the top. The mid-tier xenon line is a game changer with all bikes being disc-ready allowing you to convert them to a full disc-brake setup with Radio’s aftermarket disc brake kit. They spared no details here, from forged disc-ready dropouts with tensioners, their very own aftermarket clipper junior rims, the xenon is a natural born winner.



Specifications
Frame - Hydroformed 6061 t6 alloy, forged & disc brake mount ready dropouts, with int. Chain tensioners

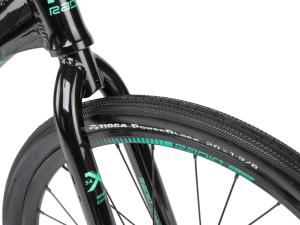

Fork - Cr-mo, 1-1/8? butted steerer tube, cr-mo fork legs, 23mm offset
Handlebar - 6061-t6 alloy
Grips - Radio, xenon, diamond knurling, clamp on grip, 132mm length

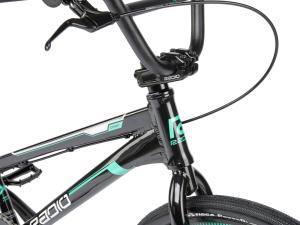

Stem - Radio, cobalt-toploader, ext. 50mm, alloy
Headset - FSA, no.28, integrated headset, sealed, 1-1/8?
Brake lever - Promax “xl-378” alloy brake rear
Brake - Promax “mv-85” alloy brake rear

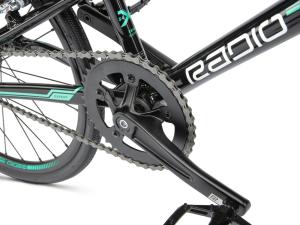

Crank - Radio, xenon 3pc crank, forged/cnc, alloy crank, 165mm length
BB - Radio, bsa square taper, sealed
Pedals - Radio, xenon slim, alloy
Chain - KMC, z6, 1/2? x 3/32?
Sprocket - Radio, 42t, alloy
Driver - Radio, 16tcog, 1/2?- 3/32?, sealed cassette driver
Front hub - Radio, xenon, alloy cnc, fully sealed, 32t, 3/8? cr-mo axle

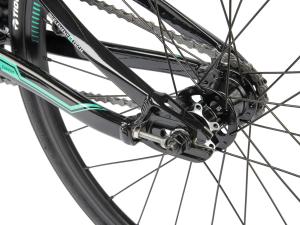

Rear hub - Radio, xenon, alloy cnc, fully sealed, 32t, disc brake cassette, 3/8? cr-mo axle
Rims - Radio, clipper junior, 28h, alloy, sleeved joint f&r
Seat - Radio, xenon, pivotal, no padding
Seat post - Radio, 22.2mm, pivotal, alloy seatpost
Seat clamp - Radio, xenon, quick-release , alloy
Tyres - Tioga, power-block, 20?x 1-3/8? f&r
Weight - 8.19kg

Frame Geometry
Top tube length - 19.5?
Chain stay length - 13.6?
Head tube angle - 73.5°
Seat tube angle - 71°
Bottom bracket height - 10.8?

Handlebar geometry
Rise - 5.75?
Width - 24.4?
Backsweep - 8°
Upsweep - 2°


$1399.00
